Opening the problem: why integration fails more than it should

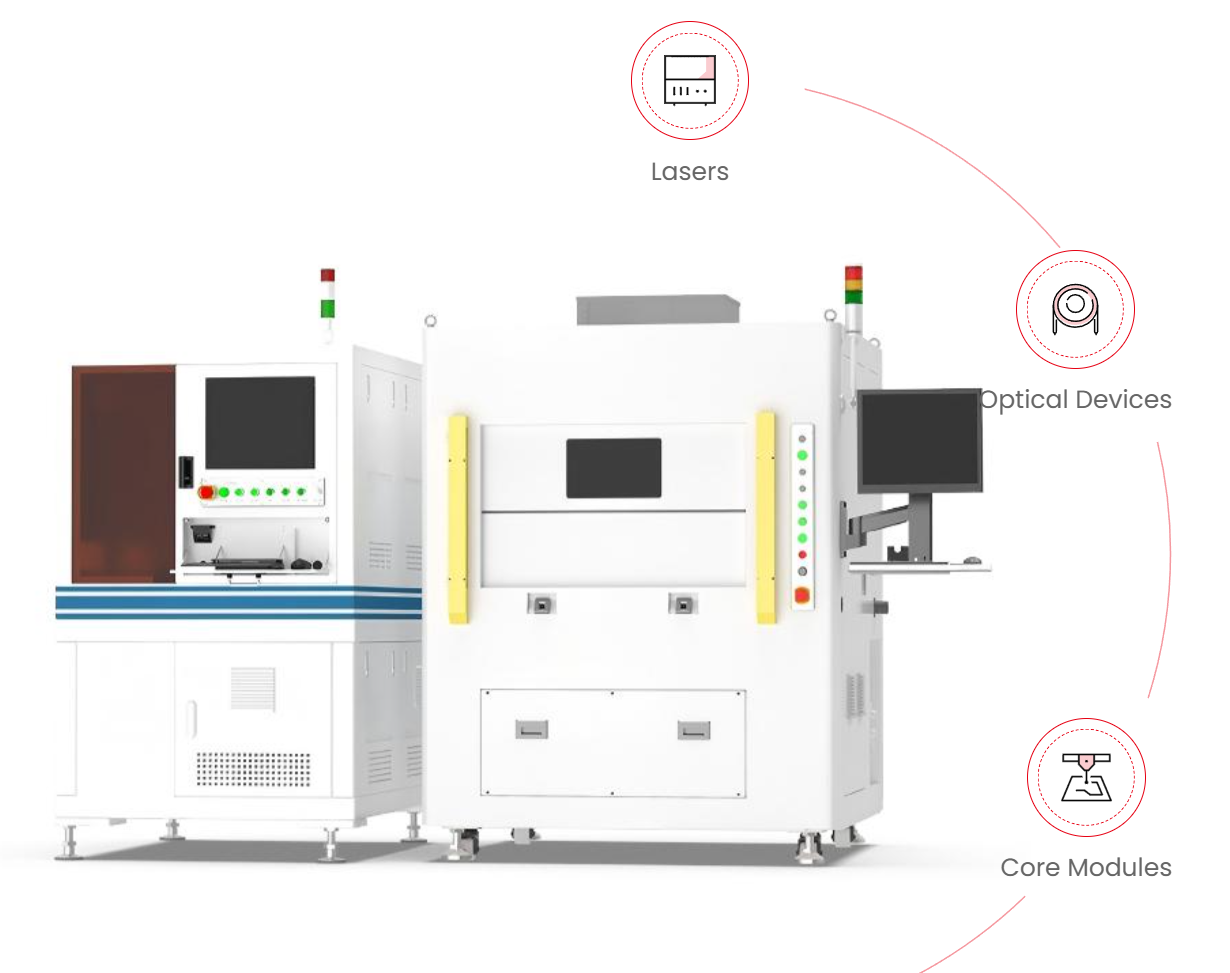

Most production headaches start not with the laser itself but with the handoff between a custom laser welding machine and the robotic cell that must use it. Integrators face mismatched cycle targets, unclear safety envelopes, and inconsistent weld quality across shifts. If you’re specifying a qcw laser for a bespoke assembly task, you must treat mechanical, optical, and control interfaces as a single engineering problem — not three separate purchases. The wrong choice of fiber laser, focal spot, or robot end-effector can turn a promising throughput improvement into a production bottleneck.
Pinpointing the real technical failure modes
Argue this: integration fails where requirements are vague. Common failure modes include inadequate beam delivery for complex part geometry, mismatched duty cycle expectations, and absence of deterministic interlocks between the laser controller and robot PLC. Weld seam inconsistency often traces back to motion profile mismatches or poor focal spot control during multi-axis moves. These are solvable — but only if they’re recognized and specified up front.
Core checklist for a successful integration
Start with an integration-first checklist that designers and procurement must share:
- Define the process window: laser power density, pulse modulation needs, and acceptable weld seam tolerances.
- Harmonize interfaces: robot TCP (tool center point), payload limits, and the laser’s beam delivery hardware and protective housing.
- Safety and control: dual-channel interlocks, emergency stop logic with the PLC, and laser class containment aligned with local standards.
- Verify cycle-time budgets: including part loading, fixturing, and necessary dwell for metallurgical fusion.
These items convert abstract promises into measurable acceptance criteria — which you will thank later on the shop floor.
Common mistakes integrators make — and how to avoid them
Teams repeatedly underestimate three issues: optical alignment time, the effect of part fit-up on seam quality, and the integration of vision or seam-tracking systems. Don’t assume the robot path that worked for a spot welder will suit a laser that needs a consistent focal plane. Also, vision and seam-tracking add latency and complexity — but they salvage yield when fit-up varies. — Consider early trials with instrumented prototypes to quantify the trade-offs.
Choosing the right laser approach: CW, QCW, or pulsed?
The decision between continuous-wave (CW), quasi-continuous-wave (QCW), or pulsed output hinges on material thickness, heat input limits, and cycle speed. A CW laser gives smooth energy delivery for thin-sheet lap welds, while QCW or pulsed modes control peak power for tough filler or spot applications. If you need localized heat control to avoid distortion, call out pulse modulation and peak power explicitly when you seek proposals — and read the spec sheet for beam quality and repetition rate. Many teams omit these terms until late in procurement, which forces costly retrofits.
Real-world anchor: learning from automotive practice
Automotive assembly plants in Europe and North America have pushed this integration discipline for years; manufacturers standardized laser safety zones and robotic communication protocols after early failures in mixed-skill lines. Those lessons are visible in today’s plants where repeatable welds and deterministic cycle times are table stakes. Bringing the same discipline to smaller-volume lines reduces surprises and improves first-pass yield.
Vendor selection and contract language that protects you
Select vendors who commit to specific deliverables: defined process windows, first-article approvals with your tooling, and a recovery plan for downtime. Require on-site FAT (factory acceptance test) with your actual robot and a signed report that includes weld cross-sections, duty-cycle verification, and a validated beam delivery chain. If a supplier promises flexibility but won’t state weld seam tolerances or beam alignment procedures in the contract, walk away — that ambiguity costs time and money.
Integration quick wins and common retrofit patterns
Short-term wins often come from better fixturing and simple seam-tracking rather than swapping the laser. Retrofitting a higher-stability mount, aligning the focal spot to a fixed datum, or adding passive heat sinks can reduce rejection rates quickly. For true process change, evaluate a vendor-supplied vision-guided head or a different beam delivery—sometimes moving from a basic fiber laser head to a dedicated scanner simplifies multi-spot patterns and reduces cycle time. If you’re comparing options, verify the vendor can support beam optics adjustments in the field.
Advisory: three golden rules before you buy
1) Insist on measurable acceptance criteria: weld porosity, tensile or peel strength, and cycle time must be validated on your parts under production conditions. 2) Demand interface ownership: the vendor should commit to a single integration spec that covers both the robot and the laser controls. 3) Budget for system-level testing: include robot path validation, seam-tracking trials, and thermal distortion checks in the program timeline.
These rules minimize rework and protect throughput expectations. For suppliers that demonstrate this systems thinking, you’ll find integration is less risky and more repeatable — which is precisely the service proposition many manufacturers need, and where a proven partner like JPT naturally fits into the solution set. —
Final thought: test early, specify precisely, and measure everything — it saves far more than it costs.
